Pepwave MAX HD2 Mobile Router

MAX BR1

Automatic Failover 4G LTE Router

The MAX BR1 offers redundant SIM slots with automatic switching, DC or terminal block power capability, Embedded WIFI WAN ,and remote management, all packed into a durable metal enclosure. It is also Axxess Marine verified for portal integration.

Redundant SIM Slots for Multiple Carriers

Redundant SIM slots with automatic switching for reliable network. You can also set the MAX BR1 to automatically switch SIM cards when you’re in danger of exceeding a data cap. It also allows you travel across borders without changing SIM cards manual

SpeedFusion Hot Failover

In case of a WAN failure, powers the MAX BR1 for instant failover. Automatic
Switching between Carriers and countries but also for example between Cellular & VSAT

Fleet Tracking and Management

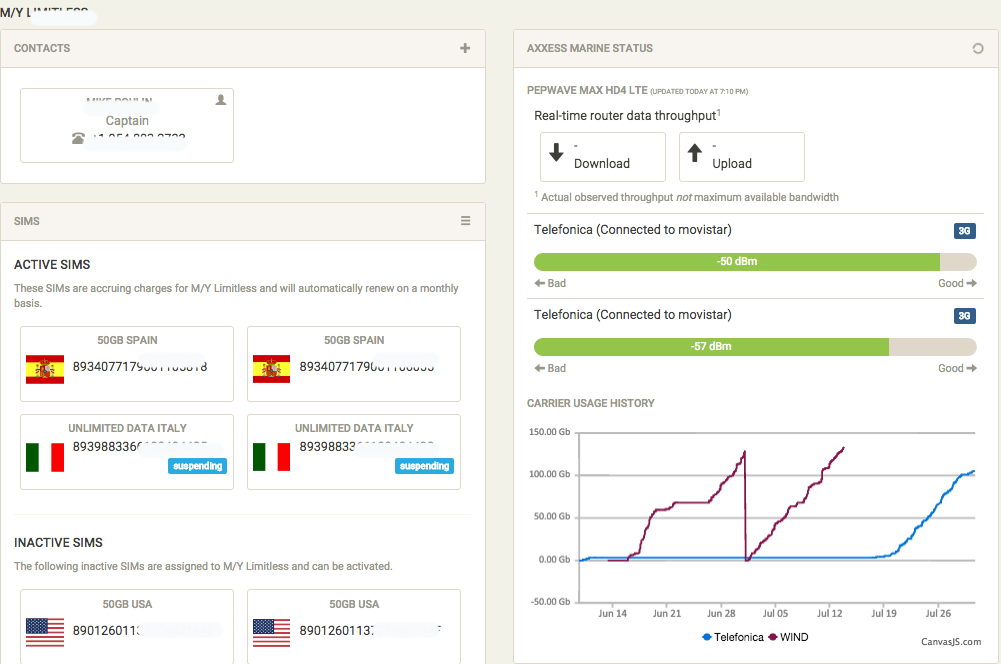

With built-in GPS tracking and InControl 2 cloud-based management remote assistance sim card activation, de-activation and top up can be controlled from the Axxess Marine Platform. View your data usage and download and upload speeds. At a glance it allows you to see the data usage per SIM.

Model Comparison

ModelMAX BR1MAX BR1 SlimMAX BR1 ENT
Ethernet WAN Ports1 (FE)1 (FE)1 (GE)
Ethernet LAN Ports2 (FE)1 (FE)2 (GE)
Embedded 4G LTE/3G111
SIM Card SizeMini-SIM (2FF)Mini-SIM (2FF)Mini-SIM (2FF)
USB WAN Modem Port o o1
Wi-Fi WAN 1 o
Wi-Fi AP 1 o
Wi-Fi Standard802.11b/g/n 150Mbps802.11b/g/n 150Mbps o
Transmit Power (2.4GHz)25dBm25dBm o
Transmit Power (5GHz) o o o
Recommended Users 21-251-251-25
Router Throughput 3100Mbps100Mbps200Mbps
VPN Functionality
PepVPN/SpeedFusion Hot Failover♦♦♦
SpeedFusion Bandwidth Bondingooo
Number of PepVPN SpeedFusion Peers222
PepVPN/SpeedFusion Throughput (No Encryption)40Mbps40Mbps100Mbps
PepVPN/SpeedFusion Throughput (256-bit AES)20Mbps20Mbps60Mbps
Central Management
InControl Cloud Management♦♦♦
GPS Fleet Management♦♦♦
Hardware Features
EnclosureCompact, Indoor MetalCompact, Indoor MetalCompact, Indoor Metal
PoE Outputoo802.3af PoE Output*
Terminal Block Power Connector for
Mobile/Vehicular Deployment		♦♦♦
Dimensions
(Height x Width x Depth)		1.6 x 5.8 x 5.0 inches
40 x 147 x 128 mm		1.1 x 3.8 x 4.8 inches
26x x 97 x 120 mm		1.6 x 5.8 x 5.0 inches
40 x 147 x 128 mm
Weight0.96 pound
435 grams		0.8 pound
350 grams		0.96 pound
435 grams
Operations
AC AdapterAC Input 100V-240V
DC Output 12V, 2A		AC Input 100V-240V
DC Output 12V, 2A
Power InputDC 10V-30V 2AMicro USB 5V 2ADC 12V-48V 2A
Terminal BlockDC 10V-30V 2ADC 12V-24V 2ADC 12V-48V 2A
Power ConsumptionMax.: 16W, Typical: 11W, Min.: 8WMax.: 10W, Typical: 8.5W, Min.: 6WMax.: 16W, Typical: 11W, Min.: 8W
Operating Temperature-40° – 149°F
-40° – 65°C		-40° – 149°F
-40° – 65°C		-40° – 149°F
-40° – 65°C
Humidity15% – 95% (non-condensing)
Certifications
FCC, CE, RoHS♦♦♦
Certifications – Motor Vehicle
E-Mark♦♦♦
Certifications – Rolling Stock
EN 61373:1999 IEC 61373:1999
Shock and Vibration Resistance		♦♦o
EN 50155
Railway Applications – Electronic
Equipment used on Rolling Stock		♦♦o
EN 61000
Electromagnetic Compatibility		♦♦o
Warranty1-Year Limited Warranty

1 The frequency range for 802.11b/g/n Wi-Fi is 2412−2472 MHz.
2 Recommendation for sizing purposes only. No software restrictions applied.
3 Router Throughput is based on Ethernet frame sizes of 1280 or 1518 bytes. Actual performance can vary across different networking environments.
* Optional PoE Activation Kit is required to activate 802.3af PoE Output.
