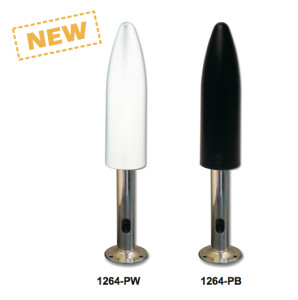

Wideband 695-3000 MHz Omni-Directional Bullet Antenna - 4-9dBi Gain
Digital Antenna’s new wide band bullet antenna covers 695-3000 MHz and provides excellent performance from LTE to WiMax in a compact design. This new patent pending 4G antenna solution is manufactured to be rugged and dependable.

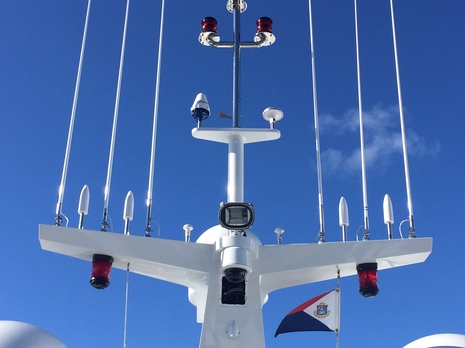

The Bullet is ideal for marine applications with its included stainless steel threaded base. Maximum performance and distance is achieved with a physically resonant design and outstanding VSWR of less than 1.5:1 in all 3G and 4G bands. Low VSWR equals maximum radiated power from the antenna providing maximum signal range.
Digital Antenna Global 5 Band 9dBi Antenna
Digital Antenna’s global marine cellular antennas and are designed and manufactured for all cellular systems, including third generation (3G) and WCDMA technology.
With a powerful 9dB gain and professional marine grade construction, these 30" omni-directional cellular antennas improve signals on all cellular bands (850, 900, 1800, 1900 and 2100 MHz) and deliver high performance that will last for years. Each antenna is designed for easy connection with a N connector.
All of our antennas are made in the USA, assembled, tested and tuned by hand for maximum performance, quality and durability.
| Model | 1200 Series |
| Frequencies | 695-3000 MHz |
| VSWR | <1.5: 1 = 695-3000 MHZ (3G & 4G bands) |
| Dimensions | 8.875" L x 2.375" OD (225 x 60 mm) |
| Weight | 15 oz. (.43 kg) |
| Radiation Pattern | Omni-directional |
| Use | Indoor or outdoor |
| Gain | 4-9dBi |
| Connector | Type N female |
| PIM | -155dBc |
| Mount | SS deck mount (included) |
| Max Power | 50W |
| Impedance | 50 ohms |
| Polarization | Vertical |
| Elements | Copper |
| Wind Rating | >110 mph |
| Exterior Finish | UV stable white or black |
| Compliance | RoHS |
| Model | 800 Series |
| Frequencies | 850, 900, 1800, 1900 and 2100MHz |
| VSWR | <1.5: 1 = 824-960 & 1710-2170MHZ |
| Dimensions | 30" / 4' / 8' L x 1" tapered OD |
| Weight | 1.6 lbs |
| Radiation Pattern | Omni-directional |
| Use | Outdoor |
| Gain | 9dBi |
| Connector | Type N female |
| Ferrule | 316 Stainless Steel |
| Mount | 1" x 14 threaded double female ferrule |
| Max Power | 250W |
| Impedance | 50 ohms |
| Polarization | Vertical |
| Elements | Copper |
| Wind Rating | >125 mph |
| Exterior Finish | UV stable white or black |
| Compliance | RoHS |
