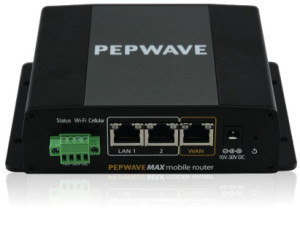

MAX-BR1

Automatic Failover 4G LTE Router

The MAX BR1 offers redundant SIM slots with automatic switching, DC or  terminal block power capability, Embedded WIFI WAN ,and remote management, all packed into a durable metal enclosure. It is also Axxess Marine verified for portal integration.

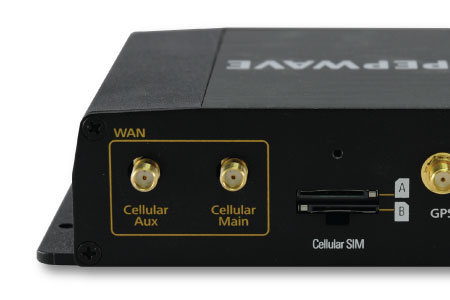

Redundant SIM Slots for Multiple Carriers

Redundant SIM slots with automatic switching for reliable network. You can also set the MAX BR1 to automatically switch SIM cards when you’re in danger of exceeding a data cap. It also allows you travel across borders without changing SIM cards manual










SpeedFusion Hot Failover

In case of a WAN failure, powers the MAX BR1 for instant failover. Automatic
Switching between Carriers and countries but also for example between Cellular & VSAT

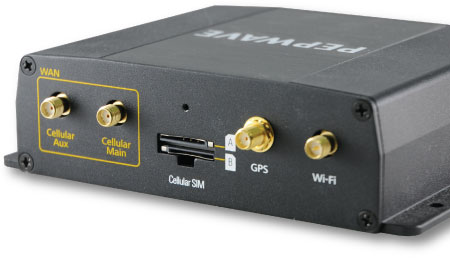

Fleet Tracking and Management

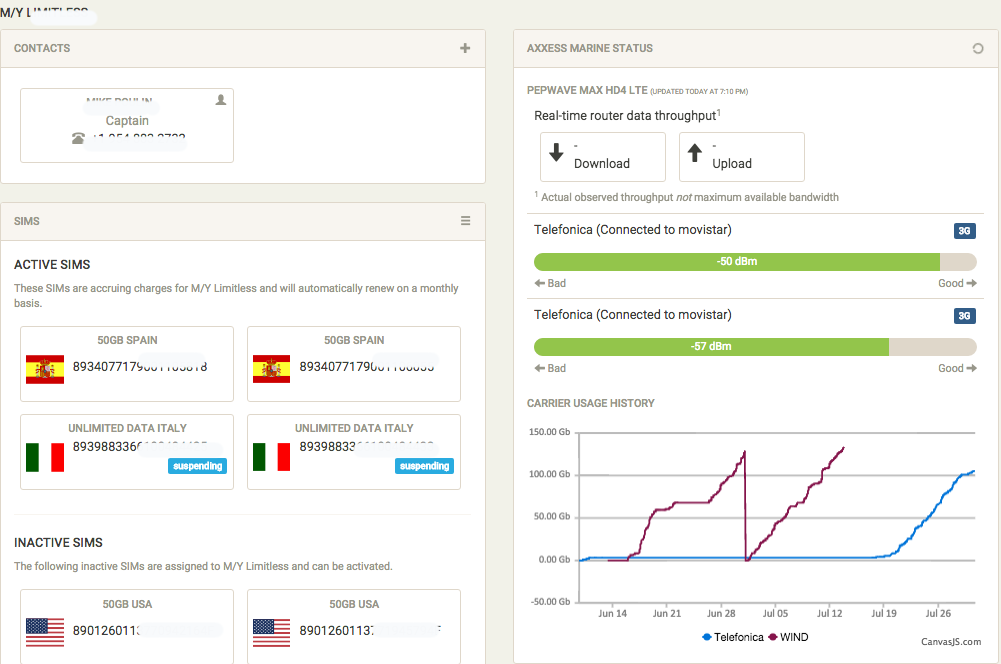

With built-in GPS tracking and InControl 2 cloud-based management remote assistance sim card activation, de-activation and top up can be controlled from the Axxess Marine Platform. View your data usage and download and upload speeds. At a glance it allows you to see the data usage per SIM.










Model Comparison



Model MAX BR1 MAX BR1 Slim MAX BR1 ENT
Ethernet WAN Ports 1 (FE) 1 (FE) 1 (GE)
Ethernet LAN Ports 2 (FE) 1 (FE) 2 (GE)
Embedded 4G LTE/3G 1 1 1
SIM Card Size Mini-SIM (2FF) Mini-SIM (2FF) Mini-SIM (2FF)
USB WAN Modem Port  o  o 1
Wi-Fi WAN 1  o
Wi-Fi AP 1  o
Wi-Fi Standard 802.11b/g/n 150Mbps 802.11b/g/n 150Mbps  o
Transmit Power (2.4GHz) 25dBm 25dBm  o
Transmit Power (5GHz)  o  o  o
Recommended Users 2 1-25 1-25 1-25
Router Throughput 3 100Mbps 100Mbps 200Mbps
VPN Functionality
PepVPN/SpeedFusion Hot Failover
SpeedFusion Bandwidth Bonding o o o
Number of PepVPN SpeedFusion Peers 2 2 2
PepVPN/SpeedFusion Throughput (No Encryption) 40Mbps 40Mbps 100Mbps
PepVPN/SpeedFusion Throughput (256-bit AES) 20Mbps 20Mbps 60Mbps
Central Management
InControl Cloud Management
GPS Fleet Management
Hardware Features
Enclosure Compact, Indoor Metal Compact, Indoor Metal Compact, Indoor Metal
PoE Output o o 802.3af PoE Output*
Terminal Block Power Connector for
Mobile/Vehicular Deployment
Dimensions
(Height x Width x Depth)
1.6 x 5.8 x 5.0 inches
40 x 147 x 128 mm
1.1 x 3.8 x 4.8 inches
26x x 97 x 120 mm
1.6 x 5.8 x 5.0 inches
40 x 147 x 128 mm
Weight 0.96 pound
435 grams
0.8 pound
350 grams
0.96 pound
435 grams
Operations
AC Adapter AC Input 100V-240V
DC Output 12V, 2A
spec_none AC Input 100V-240V
DC Output 12V, 2A
Power Input DC 10V-30V 2A Micro USB 5V 2A DC 12V-48V 2A
Terminal Block DC 10V-30V 2A DC 12V-24V 2A DC 12V-48V 2A
Power Consumption Max.: 16W, Typical: 11W, Min.: 8W Max.: 10W, Typical: 8.5W, Min.: 6W Max.: 16W, Typical: 11W, Min.: 8W
Operating Temperature -40° – 149°F
-40° – 65°C
-40° – 149°F
-40° – 65°C
-40° – 149°F
-40° – 65°C
Humidity 15% – 95% (non-condensing)
Certifications
FCC, CE, RoHS
Certifications – Motor Vehicle
E-Mark
Certifications – Rolling Stock
EN 61373:1999 IEC 61373:1999
Shock and Vibration Resistance
o
EN 50155
Railway Applications – Electronic
Equipment used on Rolling Stock
o
EN 61000
Electromagnetic Compatibility
o
Warranty 1-Year Limited Warranty

1 The frequency range for 802.11b/g/n Wi-Fi is 2412−2472 MHz.
2 Recommendation for sizing purposes only. No software restrictions applied.
3 Router Throughput is based on Ethernet frame sizes of 1280 or 1518 bytes. Actual performance can vary across different networking environments.
* Optional PoE Activation Kit is required to activate 802.3af PoE Output.
