MAX-HD2-IP67

Dual 4G LTE/3G Mobile Router

The HD2 IP67 offers dual embedded cellular modems and PoE support, all encased in
a shock and vibration certified, waterproof enclosure that’s more than a match for almost any environment.

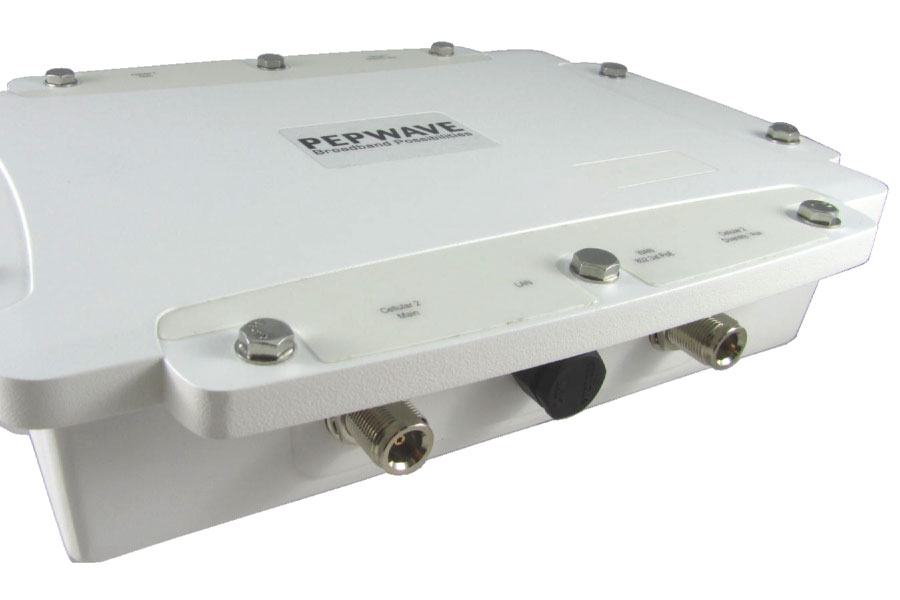

Super-Duty IP67 Enclosure.

Shock and Vibration Certified

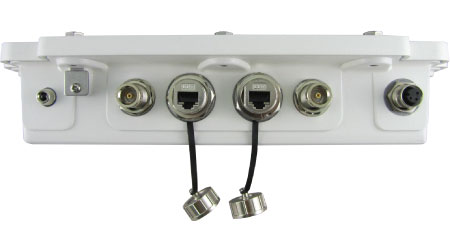

Its waterproof IP67 metal enclosure stands up to dust, vibration, and inclement weather.And, it is certified shock and vibration resistant, making it a great choice for construction, drilling, and other heavy-duty applications.










Dual Cellular and Redundant SIM slots for Multiple Carrier

The HD2 IP67 includes two built-in outdoor 4G LTE/3G modems and two Redundant SIM slots. It allows you to use the same or different cellular providers for bandwidth bonding or eliminating blind spots.










built-in-poe-icon-200px

Optional PoE Input

Cut down on cabling and simplify deployments. The HD2 IP67 supports 802.3af PoE input, so one wire is all you need for both connectivity and power. 802.af PoE Injector is available separately.

Model Comparison

Model MAX BR1 IP55 MAX BR2 IP55 MAX HD2 IP67
Ethernet WAN Ports 1 (FE) 1 (FE) 1 (GE)
Ethernet LAN Ports 2 (FE) 2 (FE) 1 (GE)
Embedded 4G LTE/3G 1 2* 2
SIM Card Size Mini-SIM (2FF) Mini-SIM (2FF) Mini-SIM (2FF)
Wi-Fi WAN 1 o
Wi-Fi AP 1 o
Wi-Fi Standard 802.11b/g/n
300 Mbps 2×2 MINO
802.11b/g/n
300 Mbps 2×2 MINO
o
Transmit Power (2.4GHz) 28dBm 28dBm o
Transmit Power (5GHz) o o o
Recommended Users 2 1-25 1-25 1-50
Router Throughput 3 100Mbps 100Mbps 100Mbps
VPN Functionality
PepVPN/SpeedFusion Hot Failover
SpeedFusion Bandwidth Bonding o
Number of PepVPN SpeedFusion Peers 2 2 2
PepVPN/SpeedFusion Throughput (No Encryption) 40Mbps 40Mbps 60Mbps
PepVPN/SpeedFusion Throughput (256-bit AES) 20Mbps 20Mbps 30Mbps
Central Management
InControl Cloud Management
GPS Fleet Management o o o
AP Controller Functionality
Manage Pepwave AP Series o o
Maximum Number of AP Support o o 10
Hardware Features
Enclosure Outdoor IP55 All-Weather Outdoor IP55 All-Weather Outdoor IP67 All-Metal
PoE Output Up To Two 802.3af or 48V Pepwave Passive PoE Outputs Up To Two 802.3af or 48V Pepwave Passive PoE Outputs o
Dimensions 1.6 x 10.2 x 5.7 inches
39.5 x 260 x 143 mm
1.6 x 5.0 x 5.8 inches
40 x 128 x 147 mm
9.0 x 12.2 x 2.6 inches
230 x 310 x 66 mm
Weight 2.65 pounds
1.2 kg
0.96 pounds
435 grams
5.84 pounds
2.65 kg
Operations
Power Input Pepwave Passive PoE: 12V – 48V DC, 2A
(48V Pepwave Passive PoE Input is Needed for 802.3af or Pepwave Passive PoE Output)^
Pepwave Passive PoE: 12V – 48V DC, 2A
(48V Pepwave Passive PoE Input is Needed for 802.3af or Pepwave Passive PoE Output)^
Power over Ethernet 802.3at^
DC: 10V – 30V, 3A
Power Consumption Max.: 16W, Typical: 11W, Min.: 8W Max.: 16W, Typical: 11W, Min.: 8W 25W (max.)
Operating Temperature -40° – 149°F
-40° – 65°C
-40° – 149°F
-40° – 65°C
-40° – 149°F
-40° – 65°C
Humidity 15% – 95% (non-condensing)
Certifications
FCC, CE, RoHS
RF Port Lightning Immunity:
ITU-T K.20 (+/- 1.5 kV)
o o
Certifications – Motor Vehicle
E-Mark o o
Certifications – Rolling Stock
EN 61373:2010
Shock and Vibration Resistance
o o
EN 61000: Electromagnetic Compatibility o o
Warranty 1-Year Limited Warranty
