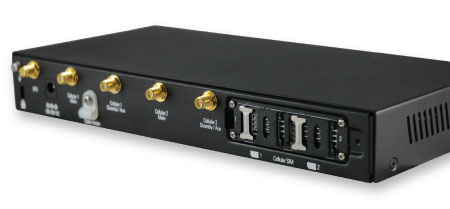

HD2

Dual 4G LTE Mobile Router

The MAX HD2 gives you blazing fast connectivity on the road with dual embedded cellular modems and SpeedFusion bandwidth bonding, plus a built-in 4-port GE switch to reduce clutter in your mobile deployments. It is also Verizon XLTE certified.

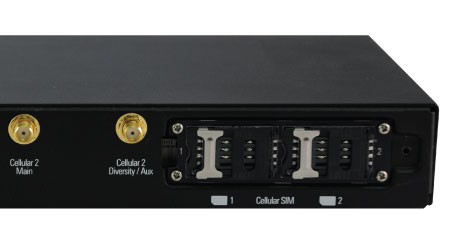

Dual Cellular for Multiple Carriers

Dual SIM slots allow you to use the same or different cellular providers for bandwidth bonding or eliminating blind spots.










Terminal Block for Secure Power Supply

The MAX HD2 is equipped with a terminal block for secure power installation in vehicles and other locations.

Built-in 4-Port GE Switch

Cut down on cabling and simplify deployments. The HD2 includes a built-in 4-port GE LAN switch, reducing clutter and the need for extra equipment.

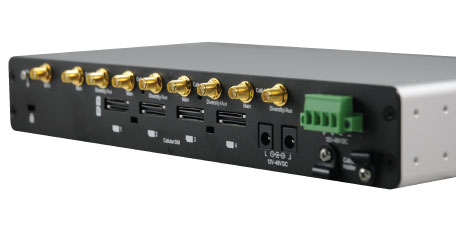

MAX-HD4 (1)

Quad 4G LTE Mobile Router

The MAX HD4 delivers outstanding performance from all your connections with the help of SpeedFusion bandwidth bonding and intelligent load balancing.

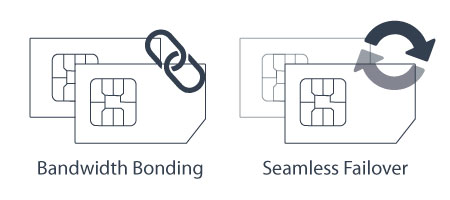

bonding-and-failover

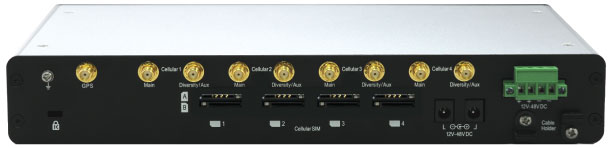

Quad Embedded Cellular Modems

Quad Cellular Modems and Redundant SIM slots allow you to use up to four different cellular providers for bandwidth bonding, data overage protection or eliminating blind spots.

Model Comparison

Model MAX HD2 MAX HD2 mini MAX HD4 MAX HD2/HD4 with MediaFast
Ethernet WAN Ports 2 (GE) 1 (GE) 2 (GE) 2 (GE)
Ethernet LAN Ports 4 (GE) 2 (GE) 8 (GE) 8 (GE)
Embedded 4G LTE/3G 2 2 4 2/4
Redundant SIM Slots o
SIM Card Size Mini-SIM (2FF) Mini-SIM (2FF) Mini-SIM (2FF) Mini-SIM (2FF)
USB WAN Modem Port 1 1 1 1
Wi-Fi WAN 1 o
Wi-Fi AP 1 o
Wi-Fi Standard 802.11b/g/n
300Mbps 2×2 MIMO
o 802.11a/b/g/n
300Mbps 2×2 MIMO
802.11a/b/g/n
300Mbps 2×2 MIMO
Transmit Power (2.4GHz) 29dBm o 24dBm 24dBm
Transmit Power (5GHz) o o 18dBm 18dBm
Recommended Users 2 1-50 1-50 50-500 1-50/50-500
Router Throughput 3 100Mbps 200Mbps 300Mbps 80Mbps
Cache Throughput 4 o o o 150Mbps
Disk Drive o o o 120GB SSD
VPN Functionality
PepVPN/SpeedFusion Hot Failover
SpeedFusion Bandwidth Bonding o*
Number of PepVPN SpeedFusion Peers 2 2 2 2
PepVPN/SpeedFusion Throughput
(No Encryption)
60Mbps 100Mbps 150Mbps 150Mbps
PepVPN/SpeedFusion Throughput
(256-bit AES)
30Mbps 60Mbps 120Mbps 120Mbps
Central Management
InControl Cloud Management
GPS Fleet Management
AP Controller Functionality
Manage Pepwave AP Series
Maximum Number of AP Support 10 10 10 10
Hardware Features
Enclosure Indoor Metal Compact Indoor Metal Indoor Metal Indoor Metal
PoE Output o Up To Three 802.3af PoE Outputs # Up to Eight 802.3af PoE Outputs # Up to Eight 802.3af PoE Outputs #
Terminal Block Power Connector for Mobile/Vehicular Deployment
Dimensions
(Height x Width x Depth)
1.6 x 10.2 x 5.6 inches
40 x 260 x 143 mm
1.6 x 5.8 x 5 inches
40 x 147 x 128 mm
1.9 x 11.5 x 6.9 inches
50 x 292 x 177 mm
1.9 x 11.5 x 6.9 inches
50 x 292 x 177 mm
Weight 2.65 pounds
1.2 kg
0.96 pounds
0.5 kg
4.20 pounds
1.9 kg
4.20 pounds
1.9 kg
Operations
AC Adapter AC Input 100V – 240V
DC Output 12V
AC Input 100V – 240V
DC Output 12V or 48V
AC Input 100V – 240V
DC Output 12V or 48V
AC Input 100V – 240V
DC Output 12V or 48V
Power Input DC 10V – 30V, 3A DC 12V – 48V, 2A DC 12V – 48V, 4A DC 12V – 48V, 4A
Terminal Block DC 10V – 30V, 3A DC 12V – 48V, 2A DC 12V – 48V, 4A DC 12V – 48V, 4A
Power Consumption 25W (max.) 15W (max.) 38W (max.) 38W (max.)
Operating Temperature -40° – 149°F
-40° – 65°C
-40° – 149°F
-40° – 65°C
-40° – 149°F
-40° – 65°C
-40° – 149°F
-40° – 65°C
Humidity 15% – 95% (non-condensing)
Certifications
FCC, CE, RoHS
RF Port Lightning Immunity:
ITU-T K.20 (+/- 1.5 kV)
o o
Certifications – Motor Vehicle
E-Mark
Certifications – Rolling Stock
EN 61373:2010
Shock and Vibration Resistance
EN 50155
Railway Applications –
Electronic Equipment used on Rolling Stock
EN 61000
Electromagnetic Compatibility
Warranty 1-Year Limited Warranty

1 The frequency range for 802.11b/g/n Wi-Fi and 802.11a/n Wi-Fi are 2412−2472 MHz and 5180−5825 MHz respectively.
2 Recommendation for sizing purposes only. No software restrictions applied.
3 Router Throughtput is based on Ethernet frame sizes of 1280 or 1518 bytes. Actual performance can vary across different networking environments.
4 Cache Throughput refers to the speed of routing content from disk drive to LAN.
* Available as an optional add-on.
# Optional PoE Activation Kit is required to activate 802.3af PoE Output.
